Caching¶
Depending on how you use the analyzer and how frequently, caching the files downloaded from the internet can be very beneficial and substantially reduce the time spent for preparing the analysis.

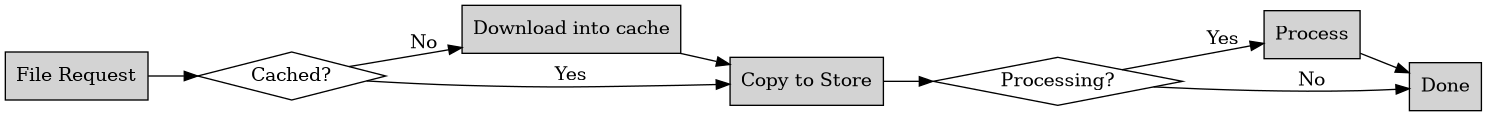

Here is a flowchart depicting the process:
![digraph Flowchart {
rankdir=LR;
node [shape=rectangle, style=filled, fillcolor=lightgray];
A [label="File Request"];
B [label="Cached?", shape=diamond, fillcolor=white];
D [label="Download into cache"];
F [label="Copy to Store"];
G [label="Processing?", shape=diamond, fillcolor=white];
H [label="Process"];
K [label="Done"];
A -> B;
B -> F [label="Yes"];
B -> D [label="No"];
D -> F;
F -> G;
G -> H [label="Yes"];
G -> K [label="No"];
H -> K;
}](_images/graphviz-e499d0cf9f7c49ba2186c3f4e002ab690bdc0adf.png)
The following files will be cached:
US 2010 Census blocks
US 2019 LODES data (employment)
US Water blocks
US State speed limits
US City speed limits
Important
The brokenspoke-analyzer does not perform any cache management operation, like invalidating the cache or cleaning up the files. This is the user’s responsability to ensure the content of the cache is up to date.
Caching strategies¶
The brokenspoke analyzer provides several caching strategies:
No cache
User cache directory
AWS S3 Bucket
The cache is configured using environment variables only.
Attention
Environment variables are case sensitive. If the value is incorrect, it falls back to the “no cache” strategy.
No cache (default)¶
By default, the brokenspoke-analyzer does not cache any data. It simply stores
them in the output directory specified by the user via the --output-dir
option (by default it is ./data).
However if the files already exist in the output directory, then they won’t be
redownloaded.
If you use the analyzer occasionally for only one or two cities, this strategy is most likely the best match.
User cache directory¶
For users running multiple or frequent analyses, this is the recomended caching strategy.
Files will be downloaded and stored in the user cache directory for future uses, speeding up the data ingestion phase.
Depending on the platform, the user cache directory will be one of the following:
OSX:
~/Library/Application Support/brokenspoke-analyzerLinux:
~/.local/share/brokenspoke-analyzerWindows:
C:\Documents and Settings\<User>\Application Data\Local Settings\PeopleForBikes\brokenspoke-analyzer
To use it, set the following environment variable:
export BNA_CACHING_STRATEGY=USER_CACHE
AWS S3 bucket¶
When using the brokenspoke-analyzer in the AWS cloud there is the possibility to cache them in an S3 bucket.
The bucket name (i.e. wthout the s3:// scheme) and the AWS region of the
account must be specified.
To use it, set the following environment variables:
export BNA_CACHING_STRATEGY=AWS_S3
export BNA_CACHE_AWS_S3_BUCKET=my-aws-cache-bucket
export AWS_REGION=us-east-1
